How to Perform UART HILS Test

1. Overview

  • Using the SerialPort Class in System.IO.Ports Namespace, you can perform serial communication from the COM port of your computer.
  • The HILS test can be performed by replacing satellite components with simulated components in S2E.
  • This document describes how to perform HILS Test with UART components.
    • If you want to perform HILS Test with I2C components, refer to here.

2. How to build files for the HILS test

  • Currently, the HILS test is only available for Visual Studio users on Windows.
  • Serial port operations are written in Interface/HilsInOut/Ports/HilsUartPort.cpp in c++/cli language.
  • When users want to execute the HILS test, complete the following steps.

    • Edit s2e-core/CMakeLists.txt

      • option(USE_HILS "Use HILS" OFF) -> option(USE_HILS "Use HILS" ON)

    • build s2e-core

  • Note: Currently, breakpoints do not work if you build c++/cli and c++ files simultaneously.

3. Sample codes for UART communication

  • The supported version of this document

    • Please confirm that the version of the documents and s2e-core is compatible.

  • Hardware Settings

    • Set loopback connection of two USB-UART converters using two USB ports of your computer.
    • Check the COM port number for each connection.
    • This tutorial assumes the use of USB-COMi-SI, a USB-UART converter.

  • Software Settings

    • s2e-core/src/Component/Abstract/ExpHils.cpp is an example of a simulation component for serial port communication.
    • ExpHils is instantiated in s2e-core/src/Simulation/Spacecraft/SampleComponents.cpp.
    • Uncomment as follows in s2e-core/src/Simulation/Spacecraft/SampleComponents.cpp.
      // UART tutorial. Comment out when not in use.
exp_hils_uart_responder_ = new ExpHils(clock_gen, 1, obc_, 3, 9600, hils_port_manager_, 1);
exp_hils_uart_sender_ = new ExpHils(clock_gen, 0, obc_, 4, 9600, hils_port_manager_, 0);

      delete exp_hils_uart_responder_;
delete exp_hils_uart_sender_;
      • Edit the constructor's argument based on the COM port number checked above.
        • The fourth argument of ExpHils constructor is COM port number.
    • Uncomment as follows in s2e-core/src/Simulation/Spacecraft/SampleComponents.h.
      ExpHils* exp_hils_uart_responder_;
ExpHils* exp_hils_uart_sender_;
    • For the HILS test, edit the setting of simulation speed in s2e-core/data/SampleSat/ini/SampleSimBase.ini.
      // Simulation speed. 0: as fast as possible, 1: real-time, >1: faster than real-time, <1: slower than real-time
SimulationSpeed = 1

  • Execution and Result

    • There are two ExpHils components, a sender component and a responder component.
      • The sender component sends out a new message like ABC, BCD, ....
      • The responder component returns the message as received.

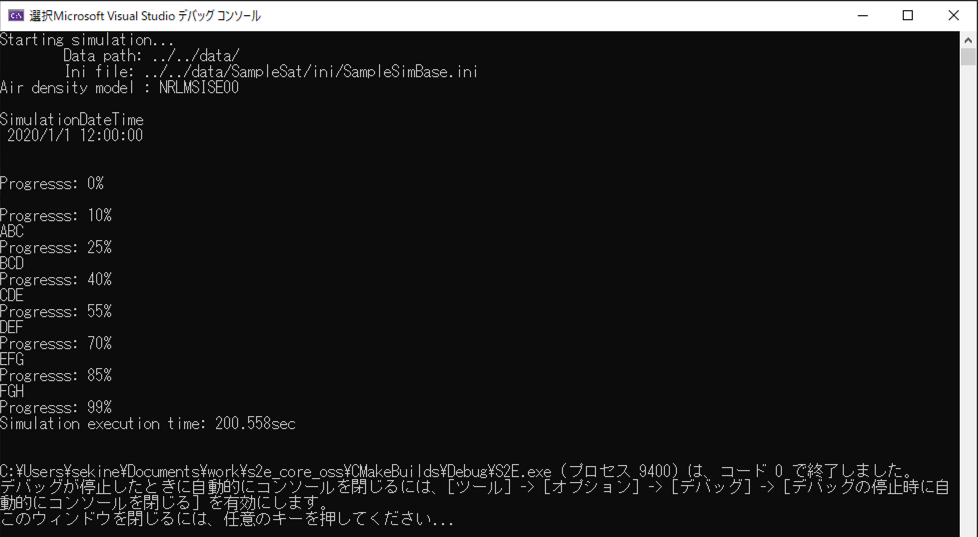

      • Data returned from the responder to the sender is output to the console. SerialPortCommunicationConfirmation
    • If the comment Error: the specified step_sec is too small for this computer. appears, set StepTimeSec in SampleSimBase.ini to a larger value.
